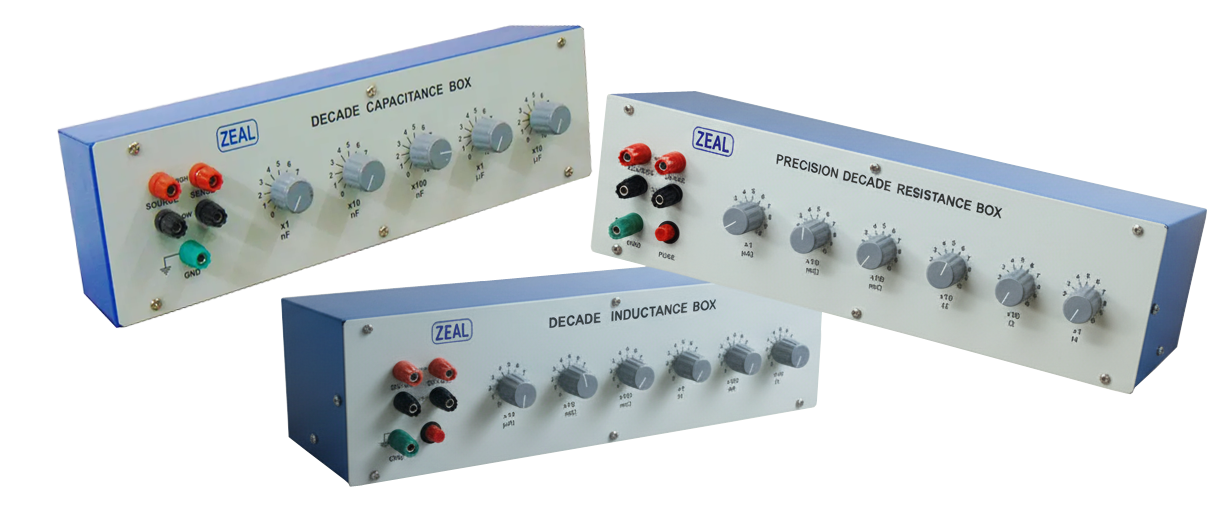

We provide Decade Boxes and Decade RLC Boxes, along with specialized Calibration Services for these products. Our setup is situated in Pune, Maharashtra, India.

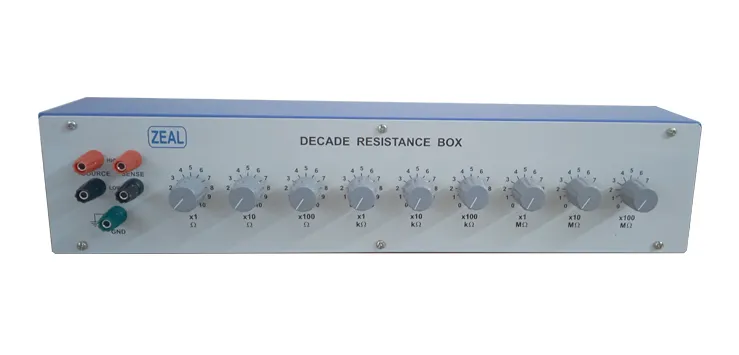

We are Manufacturer, Supplier, Exporter of Decade Boxes or Decade RLC Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.
The Decade Resistance boxes allow quick and easy setting of a wide range of resistance. The main function of these decade boxes is to create resistance with a specific value by using a combination of rotary decade switches. Resistance boxes are used in laboratory testing and calibration.
| Specification | Details | |
|---|---|---|
| Model | ZMDRB | |
| Decades | 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ. | |
| Total Resistance Range | 1Ω, to 1111.11111 MΩ. | |
| Number of Decades Switches | 09 | |
| Type Of Switches | Sliver Plate Switches | |
| Residual Resistance | < 60 mΩ for 1 year, after 1 year add 5mΩ per year | |
| Stability | 100 PPM (10 Ω to 10 MΩ) | |
| Operating Temperature | 10o C to 40o C | |
| Storage Temperature | 5o C to 70o C | |
| Drift due to ageing | 50 PPM | |
| Accuracy | Range | Accuracy: @ 20o to 28oC, RH <70% |
| X 1 Ω | ± 0.2% | |
| X 10 Ω to X 10 MΩ | ± 0.1% | |
| X 100 MΩ | ± 0.5% | |
| Dimension | 470mm(W) X 100mm(D) X 80mm(H) | |
| Weight | 2kg. (Approx.) | |

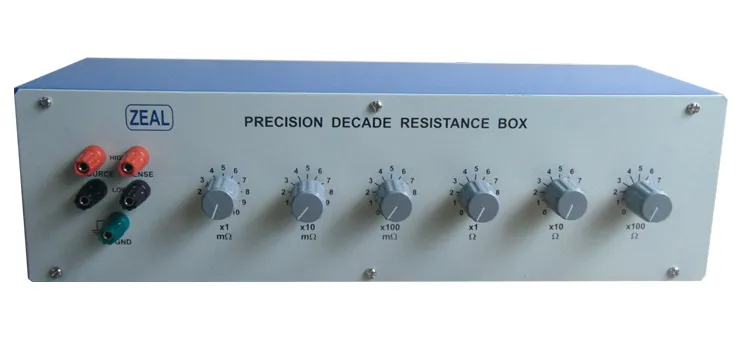

We are Manufacturer, Supplier, Exporter of Precision Decade Resistance Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.
The main function of these decade boxes is to create resistance with a specific value by using a combination of rotary decade switches. high accuracy, long-term stability, and low temperature coefficient. Resistance boxes are used in testing and calibration laboratories, QA of electronics & automation companies.
| Specification | Details | |
|---|---|---|
| Model | ZMPDRB | |
| Decades | 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω | |
| Residual Resistance | < 15 mΩ for 1 year, after 1 year add 2mΩ per year, Max residual resistance: 15mΩ | |
| Stability | 100 PPM (10 Ω to 10 MΩ) | |
| Operating Temperature | 10oC to 40oC | |
| Storage Temperature | 5oC to 70oC | |
| Drift due to ageing | 50 PPM | |
| Accuracy | Range | Accuracy: @ 20o to 28oC, RH <70% |
| X 1 mΩ | ± 2.5% | |
| X 10 mΩ | ± 1.5% | |
| X 100 mΩ | ± 0.5% | |
| X 1 Ω | ± 0.2% | |
| X 10 Ω to X 100 Ω | ± 0.1% | |
| Dimension | 420mm(W) X 130mm(D) X 120mm(H) | |
| Weight | 2.5kg. (Approx.) | |

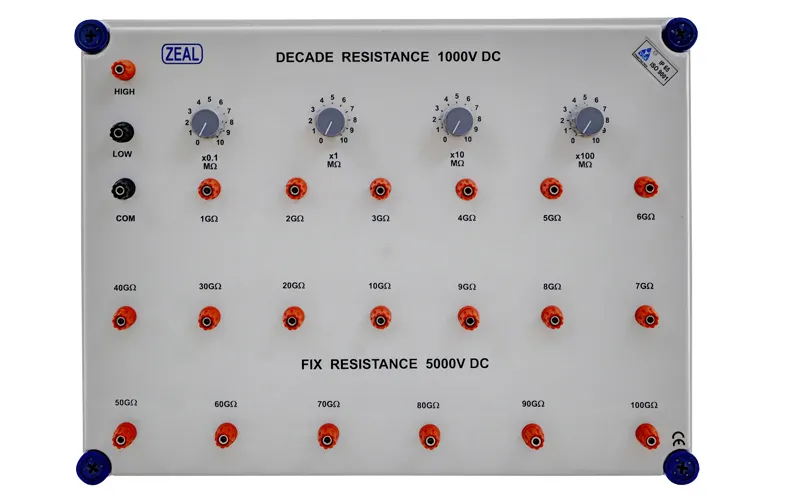

We are Manufacturer, Supplier, Exporter of Decade Resistance Box with Fix Resistors. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.
The Decade Resistance boxes allow quick and easy setting of a wide range of resistance. The main function of these decade boxes is to create resistance with a specific value by using a combination of rotary decade switches. Resistance boxes are used in laboratory testing and calibration.
| Specification | Details |
|---|---|
| Model | ZMDRB-FR |
| Decades | 0.1MΩ, 1MΩ, 10MΩ, 100MΩ (between High & Low) |
| Variable Resistance Range | 0.1MΩ to 1000 MΩ. |
| Fixed Resistors | I) 1 GΩ X 10 in series |
| ii) 10 GΩ X 10 in series | |
| Maximum Test Voltage | |
| 1000V | For all decades of 0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ |
| 5000V | For all Fixed resistor 1GΩ to 100GΩ |
| Dials of 0.1 MΩ, 10 MΩ, 100 MΩ, can be used at 5000V when connected in series with any fixed resistor | |
| Accuracy | ± 1% for all decades @25oC ± 2oC RH <60% |
| ± 2% for all decades @25oC ± 2oC RH <60% | |
| Dimension | 400mm(W) X 300mm(D) X 140mm(H) |
| Weight | 3 kg. (Approx.) |

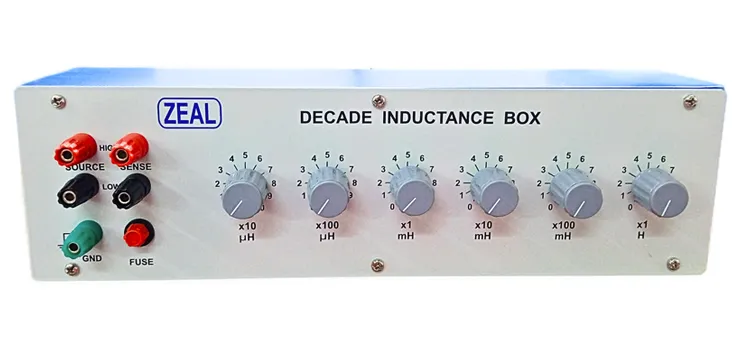

We are Manufacturer, Supplier, Exporter of Decade Inductance Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.
The Decade Inductance Box is used for testing the accuracy of multimeters and other instruments that directly measure inductance in a short period. Decade Inductance Box is custom wound and high permeability ferrite cores ensure insignificant influence from external magnetic fields and maximum stability.
| Specification | Details |
|---|---|
| Model | ZMDIB |
| Capacitance Range | 10µH to 10H |
| Decades Of | 10µH, 100µH, 1mH, 10mH, 100mH, 1H |
| Zero Inductance | < 2µH for 1 Year, After 1 year add 0.1 mH per year, Maximum Zero Inductance: 1mH |
| Accuracy | ± 1.0 % @ 1kHz for all decades, @ 25oC ± 2oC, RH: 30 to 75% |
| Operating Temperature | 10oC to 40oC |
| Storage Temperature | 5oC to 70oC |
| Drift due to ageing | 100 PPM / year |
| Temperature drift | 0.01% / °C |
| Short Term Stability Set Value | 300 PPM |
| Dimension | 410mm(W) X 100mm(D) X 80mm(H) |
| Weight | 2kg. (Approx.) |

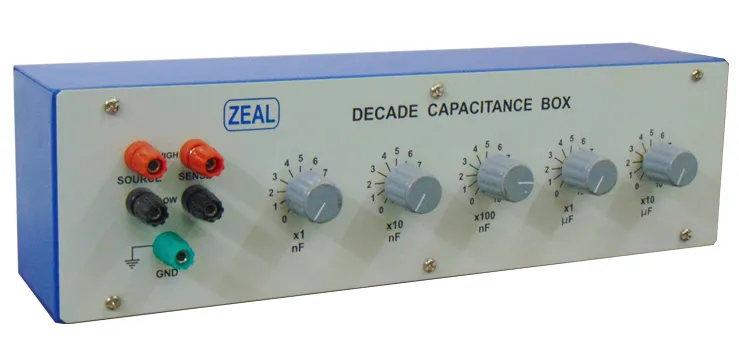

We are Manufacturer, Supplier, Exporter of Decade Capacitance Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.
The Decade Capacitance Box is designed to calibrate capacitance meters and the capacitance range of LCR meters. The selection of Decade switches has been done with the best contacts and less residual capacitance. Capacitors are highly stable and have minimum tolerances.
| Specification | Details |
|---|---|
| Model | ZMDCB |
| Capacitance Range | 1nF to 100µF |
| Decades Of | 1nF, 10nF, 100nF, 1µF, 10µF |
| Zero Capacitance | < 20 pF for 1 Year, After 1 Year add 2 pF per year, Maximum Zero Capacitance: 20pF |
| Accuracy | ± 1.0 % @ 1kHz for all decades @ 25oC ± 2oC, RH: 30 to 75% |
| Operating Temperature | 10oC to 40oC |
| Storage Temperature | 5oC to 70oC |
| Drift due to ageing | 100 PPM / year |
| Temperature drift | >0.01% / oC |
| Short Term Stability set value | 300 PPM |
| Dimension | 360mm(W) X 100mm(D) X 80mm(H) |
| Weight | 2kg. (Approx.) |
